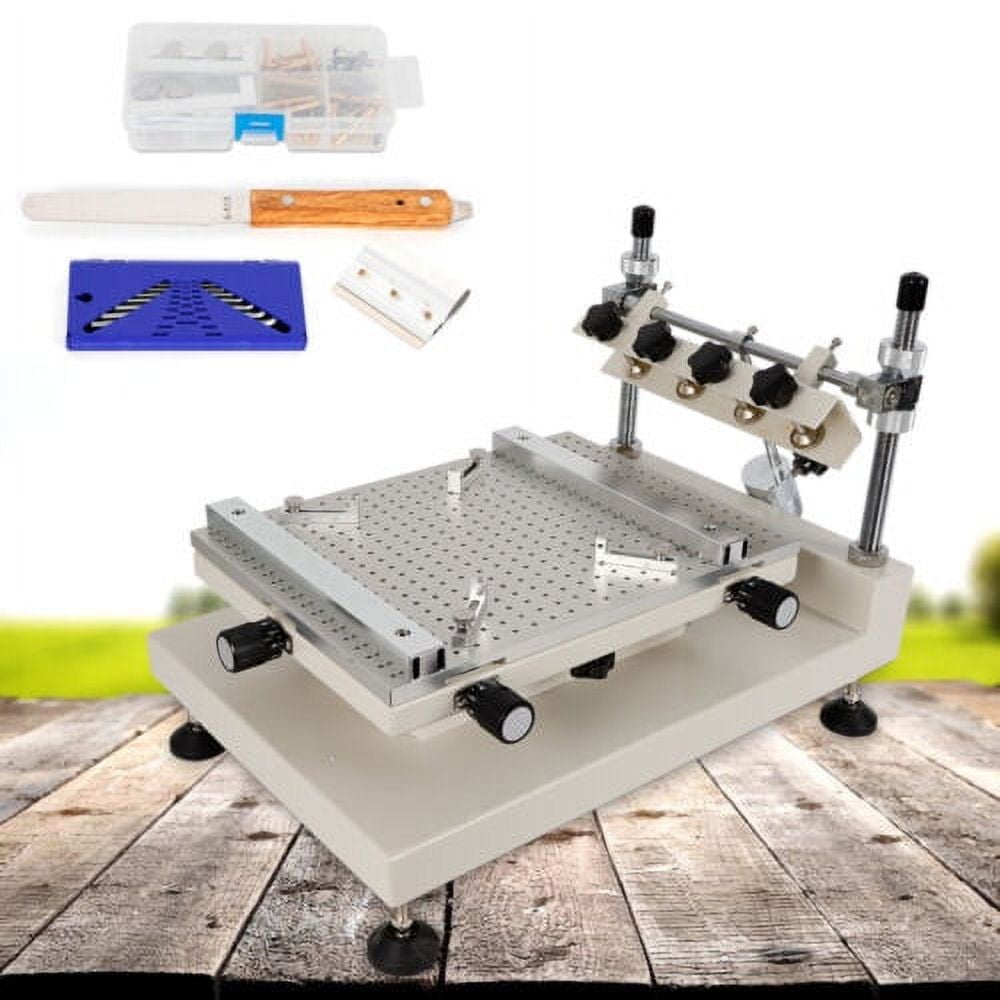

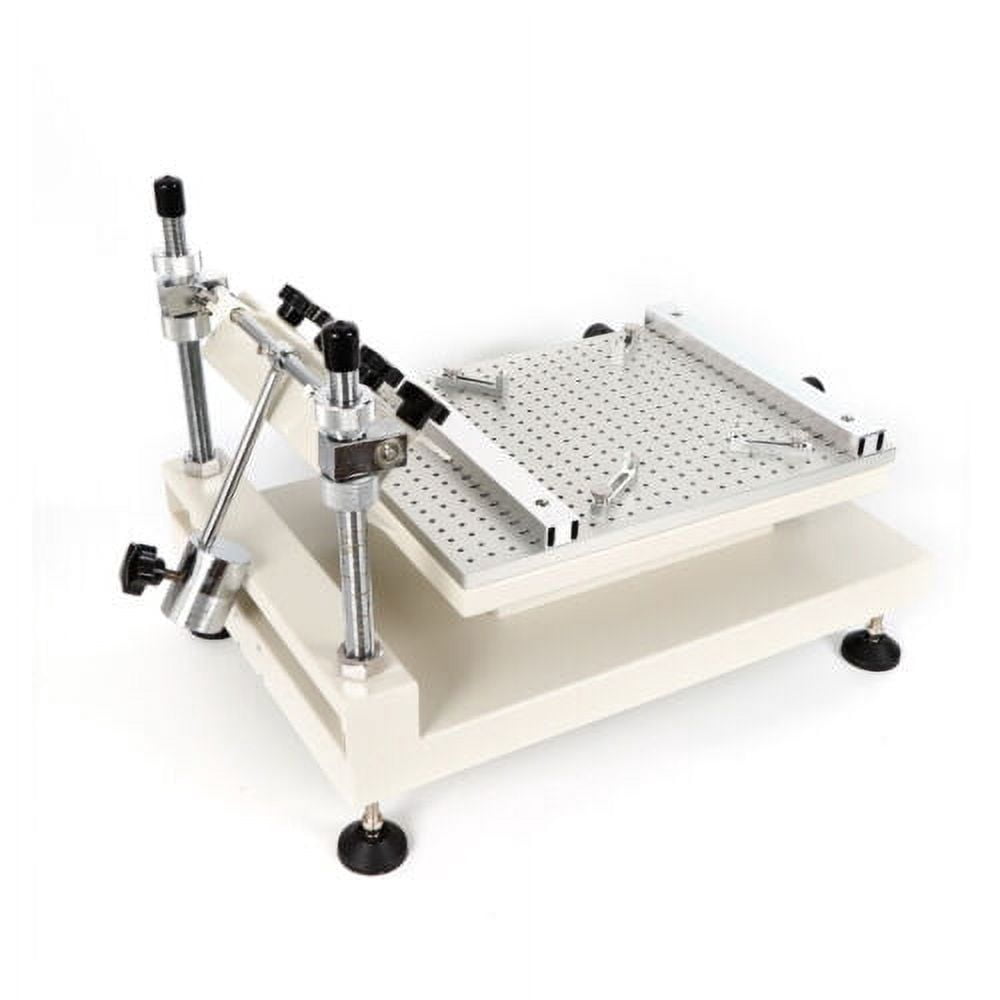

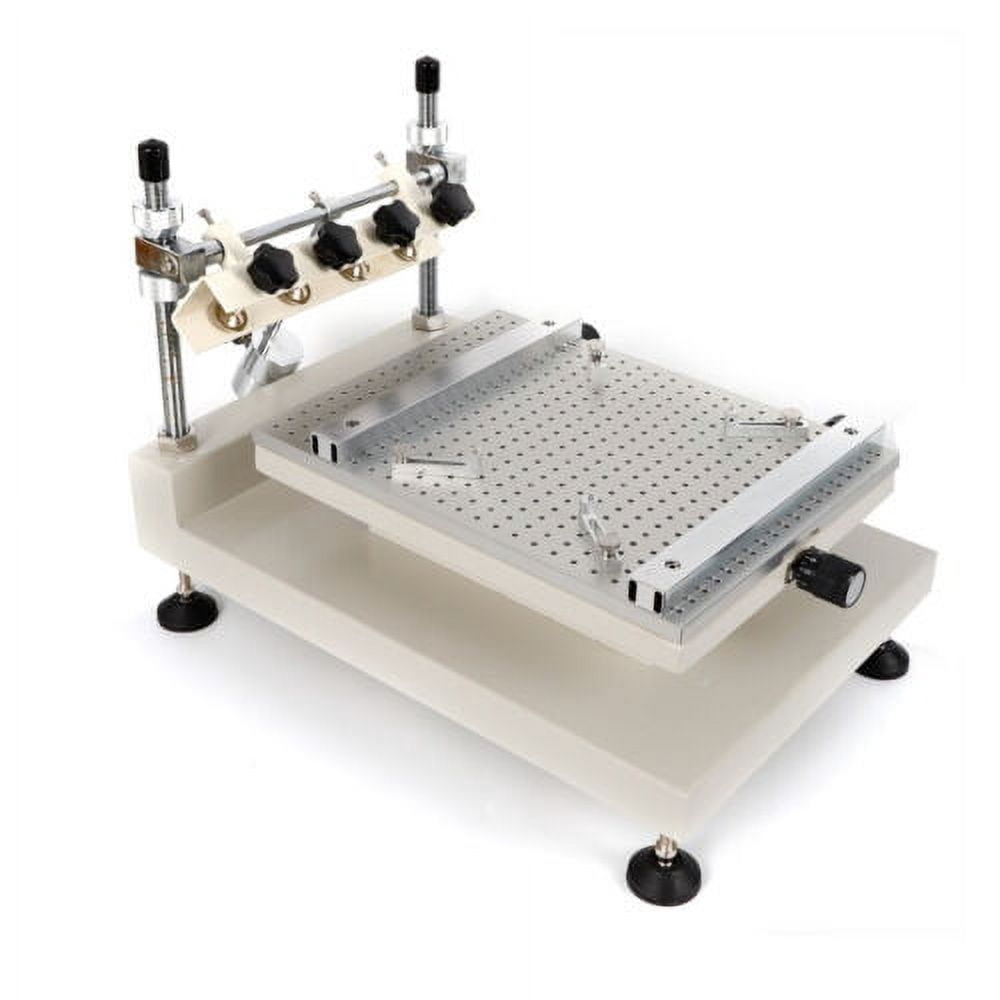

SMT Screen PCB Stencil Printer 3040 Manual Stencil Printe Solder Paste Printer

<p>Description</p> <p>3040 Solder Paste Printer</p> <p>Our solder paste printer is equipped with X and Y axis fine-tuning rotary button trim correction, which is convenient for positioning and ensures repetition accuracy. Its base is made of thickened steel plate for durability and longer service life. The printing stencil is fixed by 4 with knobs and a pressure plate, fast and firm, with high repeat accuracy. It will be your ideal choice for screen printing table.</p> <p><br>&nbsp;<br>Specifications<br>Material: Aluminum</p> <p>Max. Printing Size: 300*400 mm/11.81*15.75in&nbsp; &nbsp;</p> <p>Max. Screen Frame Size: 370*470 mm/14.57*18.50in</p> <p>Printing Speed: Manual Control</p> <p>Thickness of Printed Material: 0-80 mm/0-3.15in</p> <p>Vertical and Horizontal Adjustment of Worktable: 10 mm/0.39in</p> <p>Printing Platform Height: 19cm/7.48in</p> <p>Repeatability: ±0.01 mm</p> <p>Product Size: 54*38*39.9 cm/21.26*14.96*15.71in</p> <p>Package Size: 61*45*22cm/24*17.7*8.6in</p> <p>Net Weight: 20kg/44.09lbs</p> <p>Gross Weight: 23kg/50.70lbs</p> <p>Work Table Size: 300*400mm</p> <p>Print Size: 250*400mm</p> <p>Max Net Frame Size: 370*470mm<br>&nbsp;<br>Weight：nw.25kg Gw.35kg<br>&nbsp;</p> <p><br>&nbsp;&nbsp;&nbsp;<br>What's Included? <br>&nbsp;<br>1 X 3040 Solder Paste Printer &nbsp;<br>One Set of Accessories&nbsp;<br>&nbsp;<br></p> <p><br></p> <p><br></p> <p>Details</p> <p>Anti-slip&nbsp;Base:&nbsp;There are four anti-slip&nbsp;support feet on the base to ensure the stability of the solder paste printer when working, so that the work accuracy of the solder paste printer is guaranteed.<br>Adjustment Knob:&nbsp;The solder paste printer is equipped with X-axis and Y-axis adjustment knobs for high precision position adjustment. The knobs are designed for easy operation and energy saving.</p> <p><br></p> <p><br>Application</p> <p>The screen printing table is used in a wide range of applications, such as the packaging printing industry, advertising printing industry, circuit printing industry, craft printing industry, glass printing industry, etc.</p> <p><br></p> <p><br>Notes</p> <p>1. After each work is completed, the machine must be cleaned and maintained in time to avoid affecting the service life of the machine.</p> <p>2. When the printing template moves up and down, do not use too much force to avoid damaging the machine and affecting the positioning accuracy.</p> <p>3. Pay attention to protecting the positioning pins when taking and placing the circuit board to avoid damage. For positioning holes of different sizes, you can also equip the corresponding positioning pins.</p> <p>4. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.</p>

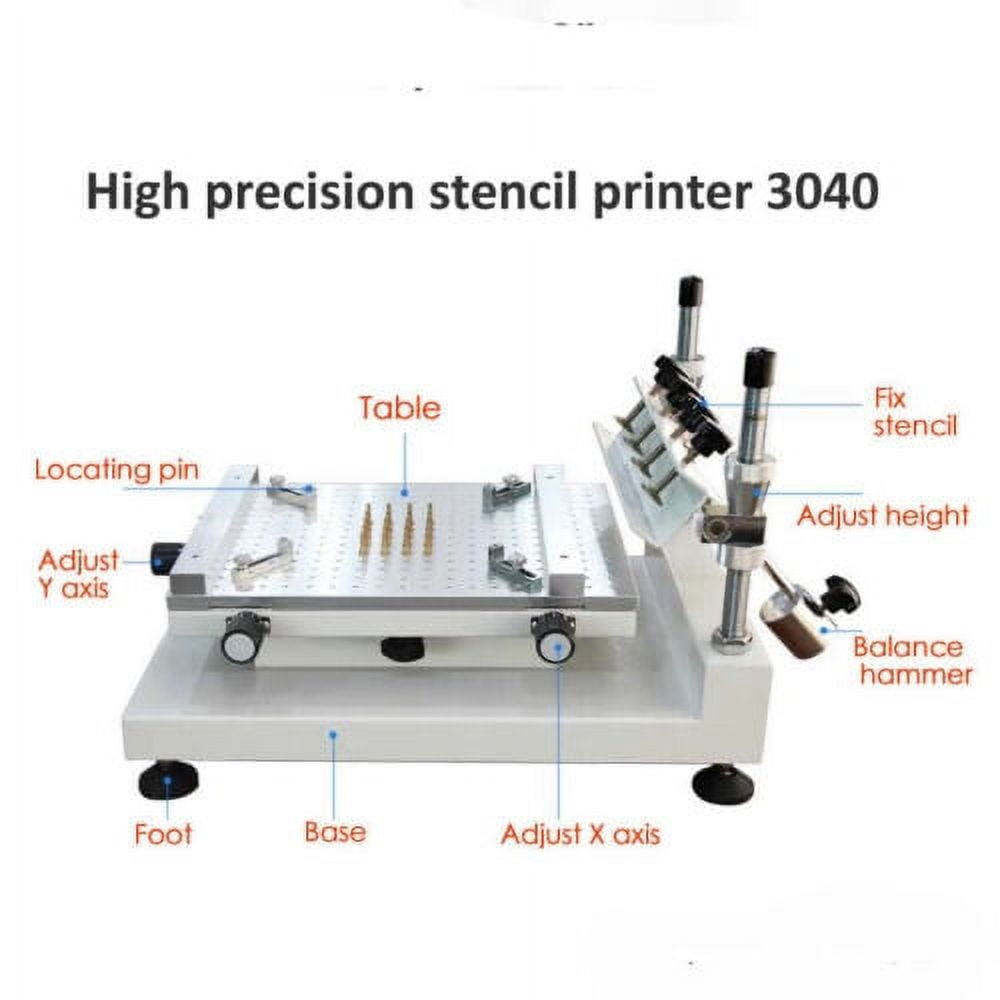

High-quality Material The working platform is made of high quality aluminum plate with honeycomb positioning holes, and the bottom plate is made of thickened steel plate welded into shape, which is strong and durable High Repetition Accuracy The repeatability of this solder paste printer is ±0.01 mm. The circuit board is positioned with positioning pins, thimble, which is easy to position and can ensure the accuracy of repeated operations. Adjustable Height The stencil holder adopts a spiral screw bar, which can be adjusted up and down in height, making it easy to control the thickness of the PCB and the amount of printed solder paste. Anti-slip Base Four anti-slip support feet on the base to ensure the stability of the solder paste printer when working, so that the work accuracy of the solder paste printer is guaranteed. Adjustment Knob The solder paste printer is equipped with X-axis and Y-axis adjustment knobs for high precision position adjustment. The knobs are designed for easy operation and energy saving. Wide Applications used in a wide range of applications, such as the packaging printing industry, advertising printing industry, circuit printing industry, craft printing industry, glass printing industry, etc Flexible Positioning: This solder paste printer adopts a universal honeycomb base plate, movable thimble, and movable support plate to position PCB flexibly, which can ensure convenient positioning. High Repetition Accuracy: The repeatability of this solder paste printer is ±0.01 mm. The circuit board is positioned with positioning pins, thimble, which is easy to position and can ensure the accuracy of repeated operations. Easy Calibration: The calibration can be achieved by moving the stencil and fine-tuning the X and Y axes of the printing platform for accurate alignment, which is convenient. Adjustable Height: The stencil holder adopts a spiral screw bar, which can be adjusted up and down in height, making it easy to control the thickness of the PCB and the amount of printed solder paste. Firm and Stable: The solder paste printer is fixed by a knob with a pressure plate, which is firm and stable. High-quality Material: The working platform is made of high quality aluminum plate with honeycomb positioning holes, and the bottom plate is made of thickened steel plate welded into shape, which is strong and durable. Easy to Clean: The aluminum surface is corrosion resistant and easy to clean. You just need to wipe the dust with a damp rag. Excellent After-sales Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us, and we will reply and solve the problem for you as soon as possible.

Engraver type	Engravers
Rec. use	Glass
Features	Adjustable Speed

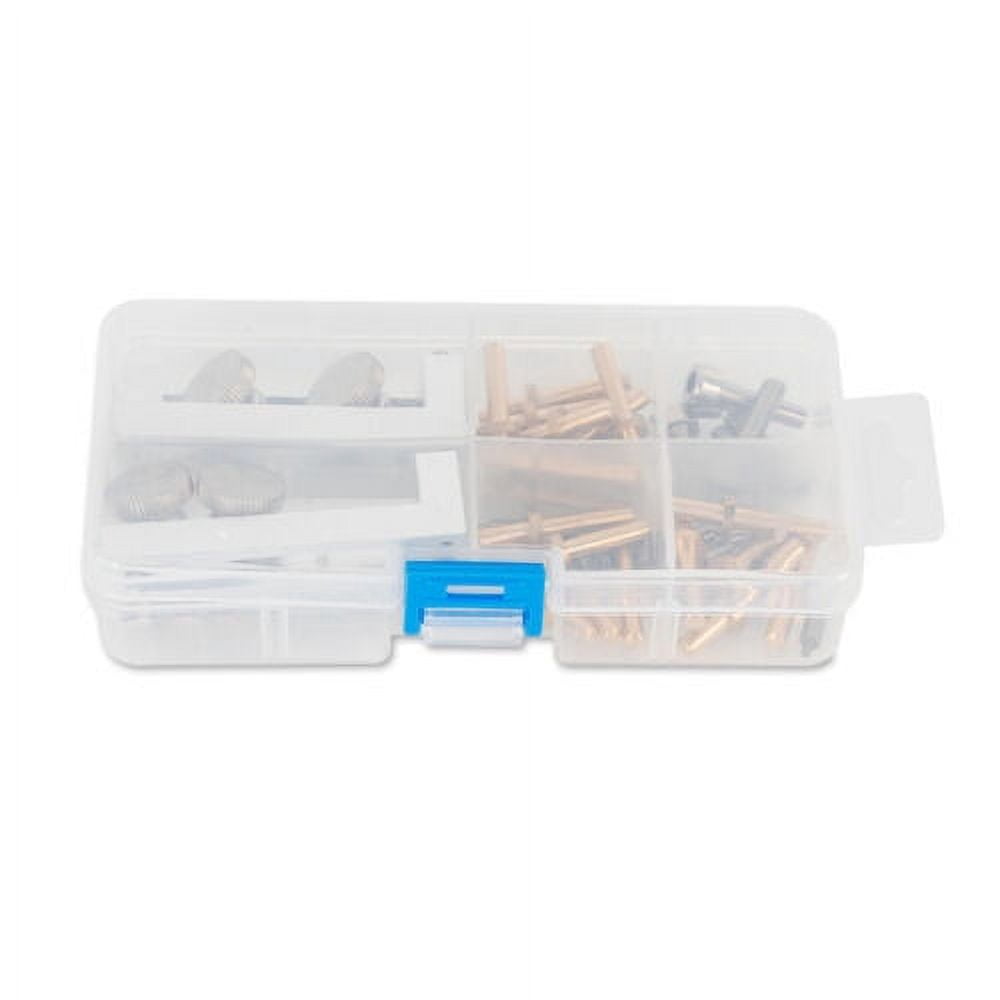

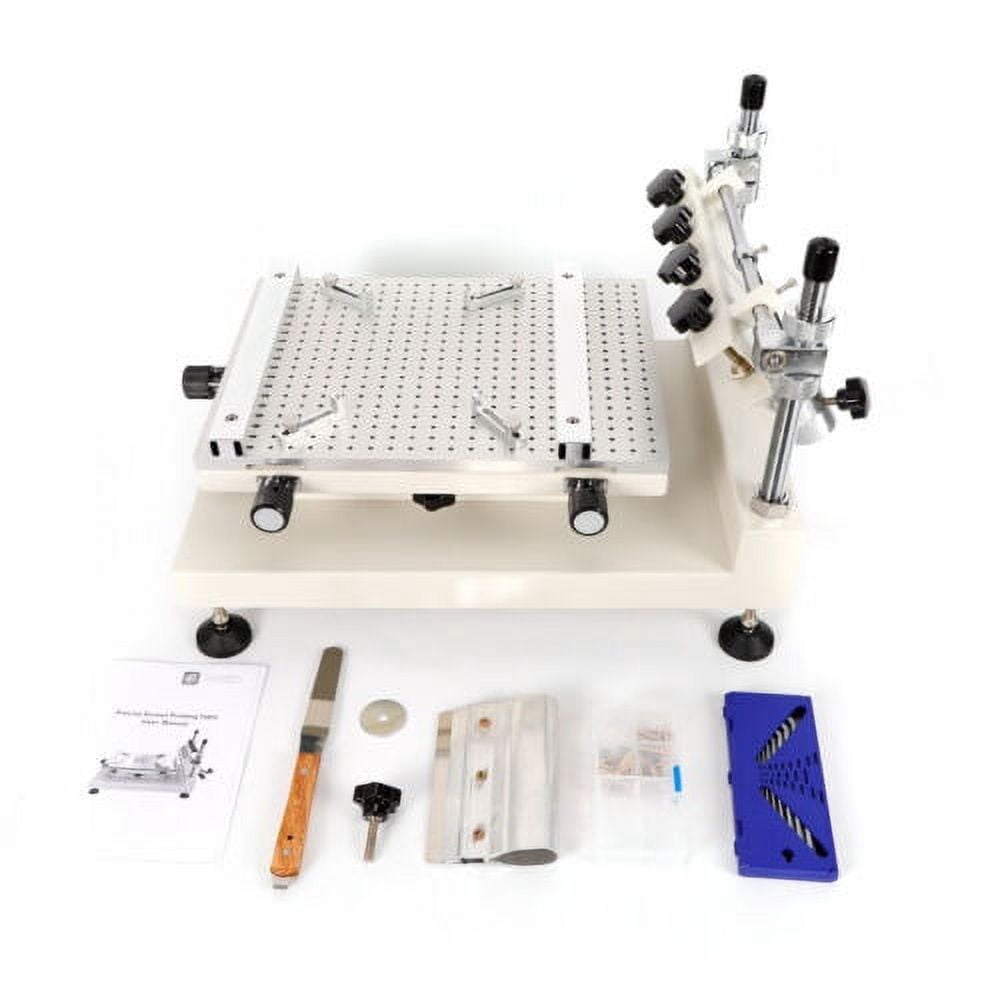

Accessories	One Set of Accessories
Assembled product height	15.71"
Weight	44.09 lbs
Material	Aluminum
Has written warranty	No
Model	3040
Piece count	1
